CapeSoft AnyText
Documentation

Installed Version Latest Version

Introduction

AnyText requires StringTheory.

AnyText requires GUTS (A Free Accessory).

AnyText allows a user to change the text in your program at runtime. All visible text, including Window Captions, Prompts, Buttons and so on can be translated. This allows you to create multi-language versions of your application, where users can be responsible for translating the text as required.

It also allows users to change terminology inside a program, even if they are using the same language. This helps to make the program more familiar to users. For example, in some countries you would use a ZIP CODE in an address, whereas in others this is known as a POSTAL CODE. Even specific words, like color / colour can have different spellings in different countries. AnyText allows this to be tweaked to best fit the user who is using it.

In different languages it may be necessary to change the "Display Pictures" for fields as well. For example any numeric containing a currency, date and time fields, and so on. AnyText allows users to change these locally on a window, or globally across the whole application.

Note: If you are upgrading from a version prior to 2.10, to version 2.10 or later, then please read the section on Upgrading to version 2.10 or later

ClarionLive

An excellent way to get an overview of AnyText is to watch ClarionLive webinar number 235. In this webinar, Bruce covers the goals and features of AnyText as well as walks you though implementing AnyText in your application.

Installation

Run the supplied installation file:

Upgrading to version 2.10 or later

If you have upgraded from a build of AnyText before 2.10 to version 2.10 or later, then the following small changes will need to be made to your existing application.
  1. ABC Templates Only - If your app is based on the Clarion (Legacy) templates then proceed with step 2.

    In your dictionary, go to the AnyTextVariables section and set the THREAD attribute ON for the  AnyText:LocalTableName field. Repeat this with the AnyText:GlobalTableName field.

  2. Do NOT change AnyText:Language - leave this as unthreaded.
  3. The code in the AnyTextSetLanguage procedure has been split, with the code setting the AnyText:GlobalTableName and AnyText:LocalTableName variables moved into a procedure called AnyTextSetFileNames.

    Update your app by importing the \clarion\accessories\libsrc\win\AnyTextUpdate1ABC.Txa file or \clarion\accessories\libsrc\win\AnyTextUpdate1Clarion.Txa file.

    In a multi-DLL situation you only need to do this in the Data DLL.

    When prompted during the import select "Replace All".

    NOTE : If you have edited the lines for setting the file name variables in AnyTextSetLanguage then you will need to make these same edits to the code in AnyTextSetFileNames.
  4. A new procedure has been added called StartAnyTextTranslateGlobal. This is included in the update files from step 3. This procedure allows the AnyTextTranslateGlobal procedure to be called, on it's own thread, from a menu item or toolbar button.
  5. The Prototype of the AnyTextTranslateGlobal procedure has changed from (anytext pAnyText) to (<anytext pAnyText>). You need to make this change to the procedure by hand.
  6. ABC templates Only - If your app is based on the Clarion (Legacy) templates then proceed with step 7.

    The embed code in AnyTextTranslateGlobal changes from

    pAnyText.PutGlobal(Queue:Browse.ATG:Original ,Queue:Browse.ATG:Translation)
    ThisGuts.PostEvent(Guts:EventRefresh,family:anytext)

    to

    if not omitted(pAnyText)
      pAnyText.PutGlobal(Queue:Browse.ATG:Original ,Queue:Browse.ATG:Translation)
      ThisGuts.PostEvent(Guts:EventRefresh,family:anytext)
    else
      AnyTextFreeCache()
    end


    It is best to make this change by hand in the procedure.
  7. Clarion (Legacy) Templates Only

    The embed code in AnyTextTranslateGlobal changes from

     pAnyText.PutGlobal(Queue:Browse.BRW3::ATG:Original ,Queue:Browse.BRW3::ATG:Translation)
    ThisGuts.PostEvent(Guts:EventRefresh,family:anytext)

    to

    if not omitted(pAnyText)
      pAnyText.PutGlobal(Queue:Browse.BRW3::ATG:Original ,Queue:Browse.BRW3::ATG:Translation)
      ThisGuts.PostEvent(Guts:EventRefresh,family:anytext)
    else
      AnyTextFreeCache()
    end


    It is best to make this change by hand in the procedure.

JumpStart

  1. Import the AnyText File Structures into your dictionary. These are supplied in the file AnyText.TXD (located in the clarion\accessory\libsrc\win directory). This creates 2 new tables, and one new set of global Variables to the dictionary; AnyTextVariables, AnyTextGlobal and AnyTextLocal.
  2. Add the GUTS Global Extension to the application, if it has not already been added.
  3. Add the StringTheory Global Extension to the application if it has not already been added.
  4. Add the AnyText Global Extension to the application. If you are creating a simple single EXE app then proceed to step 5. If you are using Anytext in Multi-App suite then proceed to step 6.
  5. 5a. On the AnyText Global Extension, on the General tab, click the button Import AnyText Procedures.

    Importing the procedures should import 5 procedures into the application; AnyTextTranslate, AnyTextTranslateGlobal, AnyTextSetLanguage, AnyTextSetFileNames and StartAnyTextTranslateGlobal. If any of these are missing then you may have missed step 1 above.

    5b. On the Options Tab set the HotKey (The default is CtrlF10 which may display as 633)
    5c. On the Options Tab set the Global File by selecting the appropriate file from your dictionary.
    5d. On the Options Tab set the Local File by selecting the appropriate file from your dictionary.

    5e. In Clarion 9 (not Clarion 8 and not Clarion 9.1 etc), after importing, you will need to open the procedure properties for each of the imported procedures. This works-around an IDE bug introduced in Clarion 9 and fixed in 9.1.

    Proceed to step 7.
  6. In the DATA DLL:
    6a. On the AnyText Global Extension, on the General tab, click the button Import AnyText Procedures.
    6b. On the Options Tab set the HotKey (The default is CtrlF10 which may display as 633)
    6c. On the Options Tab set the Global File by selecting the appropriate file from your dictionary.
    6d. On the Options Tab set the Local File by selecting the appropriate file from your dictionary.
    6e. On the Multi-DLL Tab tick on the option: This is part of a Multi-DLL program
    6f.  On the Multi-DLL Tab tick on the option: Export Class from this DLL

    In all other DLL's and the EXE's:

    6g. On the AnyText Global Extension, on the General tab, click the button Import EXTERNAL AnyText Procedures.
    6h. On the Options Tab set the HotKey (The default is CtrlF10 which may display as 633)
    6i. On the Multi-DLL Tab tick on the option: This is part of a Multi-DLL program
  7. Read the Section on Table names, go to AnyTextSetLanguage procedure, and set the code appropriately there.
  8. Read the section on Translating Hand-Code. Over time you will need to tweak any existing hand-code you may have which contains static text.

ABCErrorClass

ABC generates a number of errors internally. These ultimately flow through the MESSAGE procedure to display a message to the user.
there are two possible approaches to translating these messages.

Override the MESSAGE procedure

Clarion allows you to override the MESSAGE procedure in your application, using the System{prop:MessageHook} approach. You can code your own MESSAGE procedure (as a window in your application) and translate the messages there before they appear.

If you use CapeSoft's MessageBox accessory then this approach is done for you. However since some of the messages contain variables (like file or key names) it may still be desirable to use the approach below as this allows you to translate the message before the variable parts are replaced.

Translate the root message in ABERROR class

NOTE: As of writing this older versions of Clarion have a small bug (PTSS 42474) in the ErrorClass which prevents this approach from working. [this bug was corrected in Clarion 11 build 11.0.13227]. Fortunately, if you have an older Clarion version, fixing the bug yourself is trivial and has no side effects. See note [1] below for details.

An option on the AnyText Global Extension, Options Tab, Translate ErrorClass turns this support on or off.
If this option is on, and a message has been displayed to the user, then the message can be translated on the Global Translation window.

The original ErrorClass messages can be found in the ABERROR.TRN file. You can change this file if you wish, but if you make changes then you will need to make a local copy of that file or it will be overwritten with the next Clarion update. This file is used at Compile time though, it cannot be used as a source of runtime translations.

Note [1]: Fixing ABERROR.INC
  1. Open \Clarion\Libsrc\Win\ABERROR.INC in an editor (the Clarion IDE is fine.)
  2. Search for line circa 195, which looks like this;
    SubsString PROCEDURE,STRING,PROTECTED
  3. Add the attribute ,VIRTUAL to that line so it reads
    SubsString PROCEDURE,STRING,PROTECTED,VIRTUAL


Relationship with other 3rdParty products

We've been building Clarion Accessory products for 20 years. During that time we've released almost 40 products. Not surprisingly we avoid duplicating code wherever possible, so inevitably we end up making use of things we've already done. Where possible we try and avoid dependencies, but in some cases it makes sense to make use of existing code. The EditInPlace TPL file is a temporary measure until the EditInPlace Install is built. EditInPlace is a template which we have used internally for many years, offering EIP functionality on Browses and List-Boxes. Because the AnyText windows make use of EditInPlace you need this template.

In the medium term this template will be replaced by a refactored Edit-In-Place template and class. Owners of AnyText purchased before the release of Edit-In-Place will automatically get a free copy of Edit-In-Place when it is available.

Tables

AnyText makes use of two new tables in your dictionary. The one is called AnyTextLocal and the other is AnyTextGlobal. Not surprisingly these store the translations applicable to a single Local window, and the translations applicable to the whole application respectively.

You can change the file structures if necessary to match the File Driver the rest of your system is using.

A pair of translation files contains a single language translation. In other words if your program supports multiple languages then you will have a disk file, or SQL table for each of these, for each supported language. By keeping files separate like this it is much easier to maintain multiple languages.

A procedure called AnyTextSetFileNames is added to your application (to the Data DLL in a multi-DLL situation) which sets the name for each table. The exact code will depend a bit on the File Driver you are using, and also on your personal preferences. When adding AnyText to an application you will almost certainly want to change this code. See the next section in this doc for more information on that.

The tables start out empty, and records are created in them as you visit the various screens in your application.

AnyTextSetLanguage Procedure

The AnyTextSetLanguage procedure is a procedure added to your application, which can be called from anywhere to change the language the app is currently using. It takes a single parameter (pOptions) which you can use to identify the language to use.

The code in this procedure can be edited. It performs three basic tasks.
  1. Set the AnyText:Language variable. This can then be used elsewhere in your application to show the user which language is active.
  2. Set the AnyText:GlobalTableName and AnyText:LocalTableName variables. This will be dependent on the File Driver you have chosen. See below for some examples.
  3. Call ThisGuts.PostEvent to alert all the existing objects of the language change. For example;
    ThisGuts.PostEvent(At:NewLanguage,family:anytext,0,0,random(1,5000))
    The last parameter is an efficient method for clearing the AnyText cache.

Setting File Names

Here are some examples for setting the File Names in the AnyTextSetLanguage procedure. You have a fair amount of flexibility when creating these names, so you can use any code you prefer here, as long as the result is that the AnyText:GlobalTableName and AnyText:LocalTableName variables are set to something legal. These are just some examples of what you might have.

BTRIEVE / CLARION

AnyText:GlobalTableName = 'Lang-G-'&clip(pOptions)&'.Dat'
AnyText:LocalTableName = 'Lang-L-'&clip(pOptions)&'.Dat'

TOPSPEED

AnyText:GlobalTableName = 'Lang-'&clip(pOptions)&'.Tps\!Global'
AnyText:LocalTableName = 'Lang-'&clip(pOptions)&'.Tps\!Local'

SQL

AnyText:GlobalTableName = 'dbo.Global'&clip(pOptions)
AnyText:LocalTableName = 'dbo.Local'&clip(pOptions)


Calling the Procedure

The procedure can be called from anywhere in your program. You can pass anything you like in as the parameter - presumably though it will be something that identifies the correct language file to use.

Translating Reports

The short version: Holding down the Shift key when the report procedure starts triggers the translation window.

Shift Key

If you hold down the Shift key while starting the report procedure (in other words Shift-Click the button or menu item etc) then the report will go to the translation window before generating the report. Note that depending on the setup the report may not actually translate on this run (although it likely will.)

ABC

In ABC applications, report procedures contain fully-functional window structures and objects. This means that the "Pause the Process" control template can be added to report procedures. This template is useful because it allows to "Start Paused" - which in turn means you can put report options directly on the window.
In this situation the Ctrl-F10 (or whatever) keycode works as normal and allows you to translate the report as well as the window.

In ABC the Shift-Key approach works on all windows, not just reports. In other words shift-clicking a Browse or Form or whatever also works.

Translating Text in Hand Code

In many cases you will already have hand-code in your application which contains static text in one or other language. In order to make all the text in your application translatable, you need to pass this through the translation engine. To do this you wrap existing static text in a call to ThisAnyText.Translate. For example the following;

If Message('Do you want to close this window?', |
           'Question',|
           Icon:Question,button:Yes+Button:No,Button:No) = Button:Yes
  Post(Event:Closewindow)
End
becomes
If Message(ThisAnyText.Translate('Do you want to close this window?'),|
           ThisAnyText.Translate('Question'),|
           Icon:Question,button:Yes+Button:No,Button:No) = Button:Yes
  Post(Event:Closewindow)
End


Note that this call should only be made after the object has initialized. So make sure that the call is done after the call to ThisAnyText.Init in the procedure.


Translating a Window in Hand Code

Occasionally you have a Source procedure, or some other procedure, which has a hand-coded window declaration. Since the template is unaware of this window it does not add the necessary AnyText support to it. Fortunately you can add support manually by following these instructions;

In these instructions the window name is assumed to be MyWindow. Tweak the instructions to match your window name.
  1. Create an AnyText object for this window. If the procedure has multiple windows then create a separate object for each window. For example;

    MyAnyText AnyText
  2. Immediately after the window is opened initialize the MyAnyText object.

    MyAnyText.Init(AnyTextCache,ThisGuts,AnyTextLocal,AnyTextGlobal,'ProcedureNameMyWindow')

    The last parameter in this call should be unique for the application. So if this is a source procedure then the procedure name will suffice. If it's a Window procedure, with another hand-coded window, then you should add the window name to make the string unique.
  3. Then immediately apply the initial translation

    MyAnyText.SetWindow(MyWindow)
    MyAnyText.TranslateWindow()
  4. Inside the ACCEPT loop for this window add

    If MyAnyText.TakeEvent() then cycle.
    If Event() = Event:AlertKey and Keycode() = CtrlF10 then AnyTextTranslate(ThisAnyText).

Translating Text in a NetTalk Web Server Application

NetTalk is a different accessory from CapeSoft, used for building web applications in Clarion. NetTalk is not included in AnyText. If you are using NetTalk to build web applications then this section explains how to use AnyText to translate the text in that application.

  1. Add AnyText as normal to the application.
  2. Add the languages you will support on the AnyText Global Extension, Web tab.
  3. Add the AnyTextTranslateWebHandler extension template to the WebHandler procedure.
At this point the basic code for supporting multiple languages is now in the application.

Changing Languages

A user can change from one language to another by passing the _language_ parameter as part of the URL. For example;
http://www.whatever.com?_language_=spanish
Only languages which have been added in step 2 above are valid values for this parameter.

You can offer a user a menu item, or button, or image (or anything else which can take a URL) to allow them to change languages. All you need to do is add the _language_=something parameter to the URL.

You can also set the _language_ session value directly when the user logs in, to automatically switch to their selected language. For example;
p_web.SetSessionValue('_language_','spanish')

When changing a language only the subsequent requests from the browser will be translated into that language. Existing parts of the page that are not refreshed will not be translated. For this reason it is recommended that the link to change the language returns the user to the starting URL in the application.

Translating Text

As is normal in AnyText the translations themselves are stored in different SQL or TPS tables. In order to actually do the translations in these files you can do one of the following;

a) add a Button to the WebServer procedure, which calls the StartAnyTextTranslateGlobal procedure on a new thread. The language currently set in AnyText:Language will be used, so change this variable to the correct language before the call.
OR
b) create a separate program that browses the tables, and make translations directly in there
OR
c) add a NetWebBrowse on the Global table, with Edit-In-Place editing for translations.

Limitations

Only global translations are applied. At this stage local translations are not supported. Local translations may be supported in a future release.

How To Turn AnyText OFF

There will likely be some text in your program which your customer should not be able to translate. The ABOUT procedure containing the product name, copyright message and so on is a good candidate for this.

To turn off the translations for a window, you go to that procedure, to the Extensions list and locate the CapeSoft AnyText extension. On that extension tick on the prompt Disable This Template.

It is also possible to suppress AnyText across the whole application by using a command line switch
/notranslations
This can be included when calling the program, or it can be set programmatically using the command
SETCOMMAND(' /notranslations')
It can be removed by using the command
SETCOMMAND(' /notranslations=')

If you wish to suppress the translation of the caption bar on a specific window then you can set the DontTranslateCaption property for that window. For example
ThisAnyText.DontTranslateCaption = true

If you wish to disable translations for a specific window (at runtime) then you can set the TranslationDisabled property for that window. For example;
ThisAnyText.TranslationDisabled = true

Windows Charset for Non-Unicode Programs

ENTRY and TEXT controls use a Windows Setting to determine which Charset they are using. So even though your program may be set to use say CHARSET:GREEK, and even though some controls (like LIST and BUTTON) controls use this "as is" - some controls (like ENTRY and TEXT) make use of the Windows setting to determine what Charset to use.

This setting is usually determined by the flavor of Windows you have installed. So for example if you have Polish Windows installed then this setting is automatically CHARSET:EASTEUROPE and everything "just works".

This can be an issue though if you wish to do the translations on a version of Windows which is not in the same locale as the language you are translating to. In order to translate into Thai, on your English version of Windows, you will need to change a setting in Windows to make this possible.

Of course your end user will need this locale set as well, but since they are in say Thailand, they are likely running in this locale already, so should not need to do anything to their machine to run your program.
  1. Control Panel
  2. Search for Region. (The search may contain multiple results - click on Region)

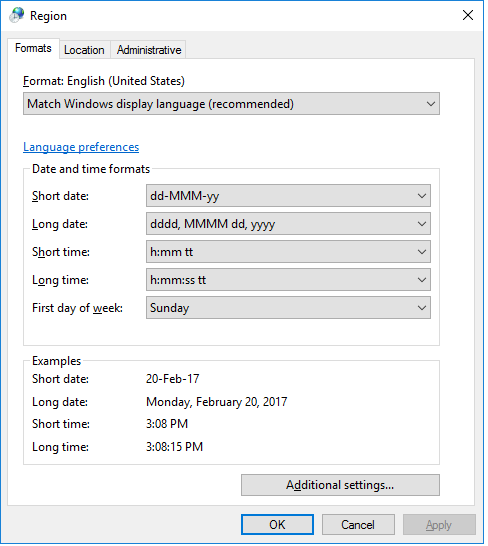

  3. You should see the Region Settings Window - something like this;
  4. Select the Administrative Tab
  5. Click on the Change System Locale button
  6. Select the country you are translating to from the list of countries.
This means of course that your ENTRY fields (that use extended character sets) can really only be for one region at a time. Since translations are done at runtime this means may be translating from one region to another region. For the purposes of doing the translation you want to set the above setting to the TO region, not the FROM region.


Limitations

Examples

There are a number of examples that ship with AnyText;
  1. ABC
    An example of using AnyText in a single ABC Template based EXE program
  2. Legacy
    An example of using AnyText in a single Clarion Template based EXE program
  3. MultiDLLABC
    An example of using AnyText in an ABC program, comprising of a Data DLL, an EXE and other DLL's.
  4. MultiDLLLegacy
    An example of using AnyText in a Clarion Template program, comprising of a Data DLL, an EXE and other DLL's.
  5. ABCWithMessageBox
    Similar to the ABC example, but using MessageBox (version 2.22 or later) to translate any MESSAGE calls.

Support

Your questions, comments and suggestions are welcome. Check our web page (www.capesoft.com) for new versions. You can also contact us in one of the following ways:

CapeSoft Support
Support Page Find support page with various options here
Email support@capesoft.com
Telephone +27 87 828 0123

Distribution

No additional files are required for shipping.

FAQs

Compile Errors

You have not downloaded and installed GUTs. You must also add the GUTs global extension to the application.

Template Reference

The Global AnyText Extension

General Tab

Disable All AnyText Features
This disables the AnyText template, and no AnyText template code will be generated into the application. This is useful for debugging.

Options Tab

HotKey
The key that the user will press to invoke translations. The default is CtrlF10 (which may display as 633).
Translate Window
The name of the TranslateWindow procedure. Defaults to AnyTextTranslate
AnyTextSetLanguage Procedure
The name of the procedure that sets the FileName variables. Default is AnyTextSetLanguage. This procedure is called on program startup. You can call it yourself whenever is appropriate for the language file to change (for example if a user, with a specific language set logs in).
AnyTextSetFileNames Procedure
Default is AnyTextSetFileNames. This is the name of the procedure which sets the file name variables for the Local Translation File and global Translation File.
Global Table
The name of the table in the dictionary which will hold the global-level translations. Usually AnyTextGlobal.
Local Table
The name of the table in the dictionary which will hold the local-level translations. Usually AnyTextLocal.
Disable IF
An expression, which if true, turns off translations. This can be useful for debugging at runtime. Defaults to command('/notranslations') which means that if you run your program with the command-line switch /notranslations then translations are disabled. Also you can set this switch in your code using the Clarion SETCOMMAND call.
Default Date Picture
Date Pictures can be translated on browses and forms. This is done via the _DatePicture_ item in the translation file. This can be translated globally or locally.

If this item is not set in the translation file, then the Default Date Picture is used.

If the Default Date Picture is not set (ie this option in the template is blank) and the item is not set in the translation file, then the date picture is left as-is.
Translate ErrorClass
If this is on the code is added to the ErrorClass object which translates messages before they are sent to the MESSAGE procedure. This option is on by default, but if you wish to suppress this behavior then you can turn it off here. Note that you may need to fix a bug in the ABERROR.INC file in order for this feature to work. For more information see ABC Error Class.

In a Multi-DLL system, with many apps, this option is available in the EXE app only. The whole system follows the setting as set in the Exe app.

Web (NetTalk) Tab

Cache the following Languages
List the languages here that the web server will support. These are fixed values, so do not use quotes.

Multi-DLL Tab

This is part of a Multi-DLL program
Tick this on if this app is part of a Multi-DLL suite of apps. This should be on for all DLL and all EXE apps in the suite.
Export Class from this DLL
Tick this on if this is the Data DLL app in your Multi-DLL suite. Leave it off for all other DLL's and EXE's.

Classes Tab

TextCache Object
AnyText caches common translations in memory to speed up performance. The cache is a global, unthreaded object. This setting is the name of that object. The default is AnyTextCache.
TextCache Class
This is the name of the AnyTextCache class. The default is TextCache.

The Local AnyText Extension

General Tab

Disable this template
If this is on then the AnyText object is not generated into the window, and hence translation is disabled for this window.

Classes Tab

Object Name
The name of the AnyText object. Defaults to ThisAnyText.
Class Name
The name of the AnyText class. Defaults to AnyText.

Class Reference

AnyText Object Architecture

AnyText uses GUTS. GUTS is a global, unthreaded queue of references (in this case AnyText references) which allows all AnyText objects to be notified when a translation is changed, or a different language is selected.

The AnyText template creates an instance of the TextCache class in your application. This instance is Global and Unthreaded. A pointer to this global glass is passed into each local AnyText object via the INIT method.

Each Window and Report procedure gets an instance of the AnyText class called (by default) ThisAnyText.

AnyText Class Method Reference

Methods

Construct

Construct()

Description

Automatically called when the object comes into scope.
Sets the RecordsLimit property to the default cache size.

Parameters

None

Return Value

None.
See Also

Destruct

Methods

Destruct

Destruct()

Description

Automatically called when the object goes out of scope.

Parameters

None

Return Value

None.
See Also

Construct

Methods

AddControl

AddControl(Long pControl, Long pTarget, Long pSuppressed=False)

Description

Adds a control to the ControlQueue property.

Parameters

Parameter Description
pControl The Field Equate number of the control to add.
pTarget The target structure of the owner of the control. One of At:TargetWindow or at:TargetReport. Will be stored as At:TargetMenu  if the control is a Menu or MenuItem control.
pSuppressed Set to true if this control may not be translated by the end user. Good for product names, Brand names, and so on.

Return Value

None.

See Also

AddOtherText

Methods

AddGlobal

AddGlobal(String pOriginal, String pTranslation)

Description

Adds a record into the GlobalFile table.

Parameters

Parameter Description
pOriginal The original text.
pTranslation The translated form of the text.

Return Value

Long. The Clarion standard error code returned by the ADD. 0 indicates success. If an Error does occur then the ErrorTrap method will be called.

See Also

 GetGlobal, PutGlobal

Methods

AddOtherText

AddOtherText(String pStr)

Description

Adds other text to the ControlQueue property. This text is not a Window or Report, but is used by the procedure. Adding it using this method means it shows up on the Local Translation window.

Parameters

Parameter Description
pStr The text used by the procedure

Return Value

None.

See Also

AddControl

Methods

CleanForSort

CleanForSort(string pStr)

Description

In order to sort text without regard for the & sign, an additional column in the table is used. This method removes all & characters from the string, and is used when priming that sort field.

Parameters

Parameter Description
pStr The text, possibly including the & character.

Return Value

String: The clean version of the string.

See Also



Methods

CloseFiles

CloseFiles()

Description

Closes the GlobalTable and LocalTable tables. Files are opened as required in the Translate method. They are only closed if the thread ends, or the Language changes.

Parameters

None

Return Value

None.

See Also

Translate

Methods

ErrorTrap

ErrorTrap(String pStr)

Description

This method is called when an error occurs in the class. By default the text is passed to the debug output (Debugview.Exe)

Parameters

Parameter Description
pStr A text description of the error.

Return Value

None.

See Also

Trace

Methods

GetDatePic

GetDatePic(String pStr)

Description

Returns the date picture for this language - this is stored in the translation file as the translation for _DatePicture_

Parameters

None

Return Value

String. A Clarion date picture. If the value is not set in the translation file, then @D6 is used as the default.

See Also



Methods

GetGlobal

GetGlobal(String pOriginal)

Description

Gets a record from the GlobalFile.

Parameters

Parameter Description
pOriginal The original text of the record to fetch.

Return Value

Long. The Clarion standard error code returned by the GET. 0 indicates success.

See Also

AddGlobal, GetLocal

Methods

GetLocal

GetLocal(String pOriginal)

Description

Gets a record from the LocalFile.

Parameters

Parameter Description
pOriginal The original text of the record to fetch.

Return Value

Long. The Clarion standard error code returned by the GET. 0 indicates success.

See Also

PutLocal

Methods

Init

Init(TextCache pTextCache,<Guts pGuts>, File pLocal, File pGlobal, string pProcedure)

Description

Gets a record from the LocalFile.

Parameters

Parameter Description
pTextCache A pointer to the global TextCache object. This cache is (safely) shared across multiple threads.
pGuts [optional] A pointer to the global GUTS object. Used to alert other windows in the application when the translation table is updated, or when the user selects a different language.
pLocal The table containing the Local translations.
pGlobal The table containing the Global translations.
pProcedure The name of this procedure (used to identify local translations)

Return Value

None

See Also

LinkObjectToFiles, SetWindow, SetReport

Methods

LinkObjectToFiles

LinkObjectToFiles()

Description

Gets a record from the LocalFile.

Parameters

None

Return Value

None

See Also

Init

Methods

PutGlobal

PutGlobal(String pOriginal, String pTranslation)

Description

Updates a record in the Global table. If the record does not exist then the AddGlobal method is automatically used to add the record. Thus a call to PutGlobal could be described as an "update or add record" call. The text in the cache is also updated.

Parameters

Parameter Description
pOriginal The original text of the record to update.
pTranslation The translated text for the record

Return Value

Long. The Clarion standard error code returned by the ADD or PUT. 0 indicates success. If an Error does occur then the ErrorTrap method will be called.

See Also

GetGlobal, AddGlobal,

Methods

PutLocal

PutLocal(String pOriginal, String pTranslation)

Description

Updates a record in the Local table. If the record does not exist thenthe record is automatically added to the table. Thus a call to PutLocal could be described as an "update or add record" call. The text in the cache is also updated. If the pTranslation parameter is an empty string then the record is deleted from the table.

Parameters

Parameter Description
pOriginal The original text of the record to update.
pTranslation The translated text for the record

Return Value

Long. The Clarion standard error code returned by the ADD or PUT. 0 indicates success. If an Error does occur then the ErrorTrap method will be called.

See Also

GetLocal

Methods

RefreshFile

RefreshFile()

Description

This method is not typically used, and is included for files created with AnyText version 1 (which was not publically available.) It is used to populate the TranslationSort, and OriginalSort fields in the GlobalFile.

Parameters

None

Return Value

None

Methods

SetReport

SetReport(Report pReport)

Description

Sets the Report property to the passed parameter. This method must be called before the TranslateReport method can be called.

Parameters

Parameter Description
pReport A pointer to a Report structure.

Return Value

None

See Also

SetWindow, TranslateReport

Methods

SetWindow

SetWindow(Window pWindow)

Description

Sets the Window property to the passed parameter. This method should be called before the TranslateWindow method can be called.

Parameters

Parameter Description
pWindow A pointer to a Window structure.

Return Value

None

See Also

SetReport, TranslateWindow

Methods

Trace

Trace(String pStr)

Description

Passes the parameter to Debugview.Exe. Used for debugging.

Parameters

Parameter Description
pStr The string to pass to Debugview.

Return Value

None

Methods

Translate

Translate(String pOriginal, Long pOptions=At:TargetOther)

Description

Returns a translation, if one exists, for the Original string. The LocalCache and Global cache are checked first, followed by the LocalFile and then the GlobalFile.

Parameters

Parameter Description
pOriginal The text to translate
pOptions [optional] One or more of the following options added together.
AT:Nocache: The cache is not checked .
AT:GlobalOnly: The LocalFile is not checked for a translation.
AT:LocalOnly: The Globalfile is not checked for a translation.
AT:TargetOther: The text is not from a window or report.
0 : None of the above.

Return Value

String. The translation string for the original text. If no translation is found then the original text is returned.

See Also

TranslateWindow, TranslateReport, TranslateControl

AnyText Class Property Reference

Property Type Description
General Properties
Caption String The caption of the window, as originally set by the window designer.
ChangeFiles Long Set to true if the files should be closed and opened the next time files are accessed on the procedure thread. This is caused by the
ControlQueue &ControlQueueType A queue of type ControlQueueType, which contains all the controls on the window and report.
DatePic String The preferred date picture to use in this procedure.
DontTranslateCaption Long If set to true then the Window caption is not translated. This is useful on windows (like say the About window) that contain the product name in the Caption.
FilesOnThread Long Contains the thread the code was running on when the File properties were last set using the LinkObjectToFiles method.
Inited Long Set to true once the INIT method has been called for the object.
Guts &Guts A pointer to the global, unthreaded, GUTS object used by this object.
GutsId Long The ID returned by the GUTS object after registering this object with GUTS.
Proc String The name of the procedure which instantiated this object.
Report &Report A pointer to the report structure in the procedure, if it exists.
TextCache &TextCache A pointer to a global, unthreaded instance of the TextCache class.
Thread Long The Thread of the procedure which instantiated this object.
TranslationDisabled Long If set to true then translation is disabled for this window. This property is set automatically to true if the command line switch /notranslations is set. You can thus set translations off globally in the program using
SETCOMMAND(' /notranslations')
Window &Window A pointer to the window structure in the procedure, if it exists.
Properties related to the Local Translation Table
These properties are set by the LinkObjectToFiles method. With the exception of the first property, they refer to the tables on the currently executing thread. If the currently executing thread changes then LinkObjectToFiles is called.
_LocalFile0 &File A pointer to the Local Table, as returned by INSTANCE(0).
LocalFile &File A pointer to the Local Table on the currently executing thread.
lProcOrigKey &Key A pointer to a key, containing the Procedure name and Original Text.
lnProcedure String The name of the procedure field - defaults to localProcedure
lnOriginal String The name of the original field - defaults to original
lnTranslation String The name of the translation field - defaults to translation
lfProcedure ANY The LocalProcedure field in the table record.
lfOriginal ANY The Original field in the table record.
lfTranslation ANY The Translation field in the table record.
lProcedure Long The field number of the procedure field in the record.
lOriginal Long The field number of the original field in the record.
lTranslation Long The field number of the translation field in the record.
Properties related to the Global Translation Table
These properties are set by the LinkObjectToFiles method. With the exception of the first property, they refer to the tables on the currently executing thread. If the currently executing thread changes then LinkObjectToFiles is called.
_GlobalFile0 &File A pointer to the Global Table, as returned by INSTANCE(0).
GlobalFile &File A pointer to the Global Table on the currently executing thread.
gOrigKey &Key A pointer to a key containing the original text.
gnOriginal String The name of the original field - defaults to original
gnOriginalSort String The name of the originalsort field - defaults to originalsort
gnTranslation String The name of the translation field - defaults to translation
gnTranslationSort String The name of the translationsort field - defaults to translationsort
gfOriginal ANY The Original field in the table record.
gfOriginalSort ANY The OriginalSort field in the table record.
gfTranslation ANY The Translation field in the table record.
gfTranslationSort ANY The TranslationSort field in the table record.
gOriginal Long The field number of the original field in the record.
gOriginalSort Long The field number of the originalsort field in the record.
gTranslation Long The field number of the translation field in the record.
gTranslationSort Long The field number of the translationsort field in the record.

TextCache Class Method Reference

Methods

Construct

Construct()

Description

Automatically called when the object comes into scope.
Sets the RecordsLimit property to the default cache size.

Parameters

None

Return Value

None.
See Also

Destruct

Methods

Destruct

Destruct()

Description

Automatically called when the object goes out of scope.

Parameters

None

Return Value

None

See Also

Construct

Methods

Delete

Delete(String pProc,String pOriginal)

Description

Deletes a record, if it exists, from the cache.

Parameters

Parameter Description
pProc The name of the procedure
pOriginal The original text

Return Value

Long. Returns cache:ok

Example

ThisAnyText.TextCache.Delete(ThisAnyText.Proc,'Insert')

See Also

Put, Get, Free

Methods

Free

Free(Long pCacheNumber=0)

Description

Deletes all the records in the cache.

Parameters

Parameter Description
pCacheNumber If multiple calls to Free are made, with the same cacheNumber, then only the first call actually clears the queue. Subsequent calls with the same number (other than 0) are ignored.
Return Value

None

See Also

Get, Put, Delete

Methods

Get

Get(String pProc,String pOriginal,*String pTranslation)

Description

Gets a record, if it exists, from the cache.

Parameters

Parameter Description
pProc The name of the procedure
pOriginal The original text
pTranslation The translation of the text.

Return Value

Long. Returns cache:NotFound if no record was found, cache:ok if a record was found. If a record was found the value in pTranslation is updated, otherwise pTranslation is unaltered.

Example

ThisAnyText.TextCache.Get(ThisAnyText.Proc,'Insert',InsertText)

See Also

Put, Delete, Free

Methods

Put

Put(String pProc,String pOriginal,String pTranslation)

Description

Adds a record to the cache. If it already exists then it is updated.

Parameters

Parameter Description
pProc The name of the procedure
pOriginal The original text
pTranslation The translation of the text.

Return Value

Long. Returns cache:ok

Example

ThisAnyText.TextCache.Get(ThisAnyText.Proc,'Insert',InsertText)

See Also

Get, Delete, Free

Methods

Release

Release(Long pId)

Description

Used when access to the queue is required. Must be paired with one, and only one, call to Wait.

Parameters

Parameter Description
pId Used to identify where the method is called from. Useful for debugging when unbalanced Wait/Release calls occur.
Return Value

None

See Also

Wait

Methods

Trace

Trace(String pStr)

Description

Used for debugging. Sends a string to DebugView.

Parameters

Parameter Description
pStr The contents of the string are sent to DebugView.
Return Value

None

Methods

Wait

Wait(Long pId)

Description

Used when access to the queue is required. Must be paired with one, and only one, call to Release.

Parameters

Parameter Description
pId Used to identify where the method is called from. Useful for debugging when unbalanced Wait/Release calls occur.
Return Value

None

See Also

Release

TextCache Class Property Reference

Property Type Description
TextQueue &TextQueueType A queue which contains the procedure name, original text, and translated text in memory. Since the object is global, unthreaded, the queue is also global, unthreaded.
RecordsLimit Long The number of records allowed to be in the queue. When the cache exceeds this limit the cache is cleared, and starts caching again. The default cache limit is 5000 records.
cs ICriticalSection A Critical Section to prevent contention on the TextQueue.
CacheNumber Long A number which is assigned to the current queue instance. Used as an optimization so that if multiple threads issue a Clear Cache instruction at the same time, then the first call clears the threads, but the other calls (with the same number) are ignored.

License & Copyright

This template is copyright 2023 by CapeSoft Software. None of the included files may be distributed. Your programs which use AnyText can be distributed without any royalties.

This product is provided as-is. Use it entirely at your own risk. Use of this product implies your acceptance of this, along with the recognition of the copyright stated above. In no way will CapeSoft Software, their employees or affiliates be liable in any way for any damages or losses you may incur as a direct or indirect result of using this product.

Version History

Note: If you are upgrading from a version prior to 2.10, to version 2.10 or later, then please read the section on Upgrading to version 2.10 or later

2.40 - 6 July 2023
2.39 - 21 April 2023
2.38 - 17 April 2023
2.37 - 16 February 2022 2.36 - 12 October 2021 2.35 - 24 May 2021 2.34 - 15 April 2021 2.33 - 27 August 2020 2.32 - 16 July 2020 2.31 - 14 September 2018 2.30 - 16 January 2018 2.29 - 2 August 2017 2.27 - 17 May 2017 2.26 - 17 May 2017 2.25 - 20 Feb 2017 2.24 - 21 July 2016 2.23 - 30 June 2016 2.22 - 8 May 2015 2.21 - 7 May 2015 2.20 - 13 April 2015 2.19 - 9 March 2015 2.18 - 25 February 2015 2.17 - 5 February 2015 2.16 - 26 November  2014 2.15 - 22 October  2014 2.14 - 11 July  2014 2.13 - 2 May  2014 2.12 - 17 April 2014 2.11 - 18 February 2014
2.10 - 7 February 2014
2.07 - 23 January 2014
2.06 - 13 January 2014 2.05 - 6 January 2014
2.04 - 17 December 2013 2.03 - 5 December 2013 2.02 - 12 November 2013 2.01 - 12 November 2013 2.00 - 8 November 2013
